Name: Дънна платка, ASROCK X870 PRO-A WIFI /AM5
Brand: ASROCK
SKU: X870 PRO-A WIFI
Price: 188.62 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

ASROCK

Дънна платка, ASROCK X870 PRO-A WIFI /AM5

Цена

€188⁶² / 368⁹¹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 25€

+2 години: + 36€

Код: X870 PRO-A WIFI
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.asrock.com/mb/AMD/X870%20Pro-A%20WiFi/index.us.asp

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

CPU's supported

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

AMD X870

Expansion slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode

Chipset:

- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode*

- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

- 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

- 4 x SATA3 6.0 Gb/s Connectors

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Memory type

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

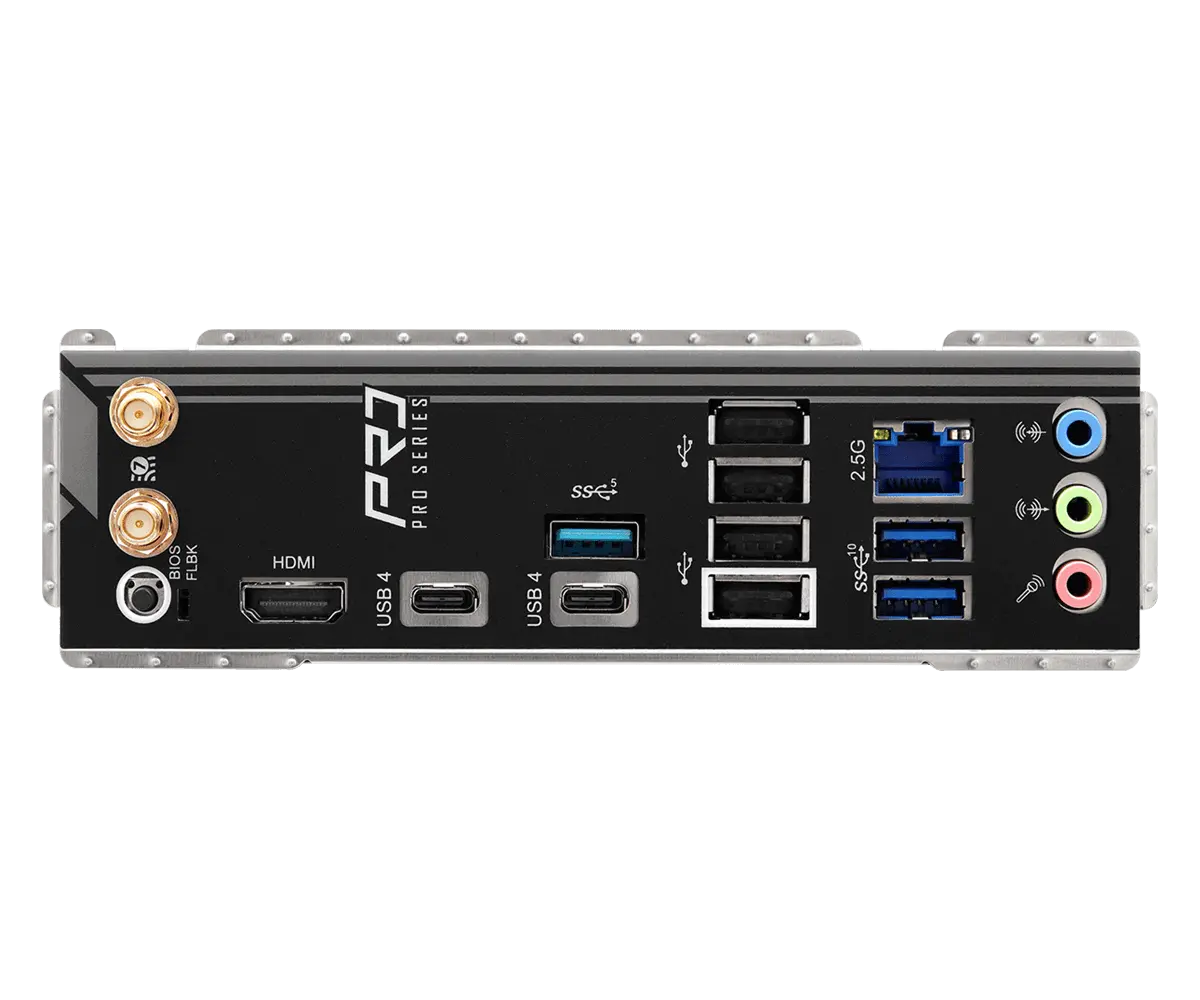

Rear panel I/O

2 x Antenna Ports

1 x HDMI Port

2 x USB4 Type-C Ports (40 Gb/s)

2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

1 x USB 3.2 Gen1 Type-A Port

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

USB

CPU:

- 2 x USB4 Type-C (Rear)

- 2 x USB 3.2 Gen2 Type-A (Rear)

Chipset:

- 1 x USB 3.2 Gen1 Type-C (Front)

- 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front)

- 8 x USB 2.0 (4 Rear, 4 Front)

Connectors

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header

3 x Addressable LED Headers

2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)

3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen1 Header

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

Lan

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Wireless

802.11be 2x2 Wi-Fi 7 Module

Supports IEEE 802.11a/b/g/n/ac/ax/be

Supports 2.4GHz/5GHz/6GHz frequency band

Supports 160MHz channel bandwidth with 6GHz frequency band

1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.4

Supports MU-MIMO

Bluetooth

5.4

BIOS

512Mb AMI UEFI Legal BIOS with GUI support

Form factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

8 Layer PCB

Microsoft® Windows® 10 64-bit / 11 64-bit

Warranty

36 Months

Атрибут	Стойност
Vendor_url	https://www.asrock.com/mb/AMD/X870%20Pro-A%20WiFi/index.us.asp
Chipset	AMD X870
OS	Microsoft® Windows® 10 64-bit / 11 64-bit
Warranty	36 Months
CPU's supported	Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Memory type	Dual Channel DDR5 Memory Technology
Memory type	4 x DDR5 DIMM Slots
Memory type	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Memory type	Max. capacity of system memory: 256GB
Memory type	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor	8 Layer PCB
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio	Nahimic Audio
Rear panel I/O	1 x HDMI port
Rear panel I/O	4 x USB 2.0 Ports
Rear panel I/O	1 x RJ-45 LAN Port
Rear panel I/O	1 x BIOS Flashback Button
Rear panel I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O	2 x Antenna Ports
Rear panel I/O	2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
Rear panel I/O	2 x USB4 Type-C Ports (40 Gb/s)
Rear panel I/O	1 x USB 3.2 Gen1 Type-A Port
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
LAN	Dragon RTL8125BG
LAN	Smart Auto Adjust Bandwidth Control
LAN	Visual User Friendly UI
LAN	Visual Network Usage Statistics
LAN	Optimized Default Setting for Game, Browser, and Streaming Modes
LAN	User Customized Priority Control
LAN	Supports Dragon 2.5G LAN Software
Expansion Slots	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Expansion Slots	Chipset:
Expansion Slots	CPU:
Expansion Slots	- Supports AMD CrossFire™
Expansion Slots	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Expansion Slots	- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
Expansion Slots	- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode*
Expansion Slots	- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode
Wireless	Supports MU-MIMO
Wireless	802.11be 2x2 Wi-Fi 7 Module
Wireless	1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Wireless	Supports Bluetooth 5.4
Wireless	Supports 2.4GHz/5GHz/6GHz frequency band
Wireless	Supports 160MHz channel bandwidth with 6GHz frequency band
Wireless	Supports IEEE 802.11a/b/g/n/ac/ax/be
Graphics	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
Graphics	- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Features	Superb Productivity
Features	- Dual Channel DDR5
Features	EZ Update
Features	- BIOS Flashback Button
Features	- ASRock Auto Driver Installer
Features	EZ Troubleshooter
Features	Ultrafast Connectivity
Features	- ASRock Post Status Checker
Features	- PCIe Gen5 (Graphics, M.2)
Features	- Flexible Integrated I/O Shield
Features	- 2.5G LAN, 802.11be Wi-Fi 7 Module
Features	- USB4 Type-C Ports (40 Gb/s)
Features	Rock-Solid Durability- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
BIOS	512Mb AMI UEFI Legal BIOS with GUI support
I/O	1 x HDMI Port
I/O	HD Audio Jacks: Line in / Front Speaker / Microphone
I/O	2 x Antenna Ports
I/O	4 x USB 2.0 Ports
I/O	1 x RJ-45 LAN Port
I/O	1 x BIOS Flashback Button
I/O	2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
I/O	2 x USB4 Type-C Ports (40 Gb/s)
I/O	1 x USB 3.2 Gen1 Type-A Port
Storage	- 4 x SATA3 6.0 Gb/s Connectors
Storage	CPU:
Storage	Chipset:
Storage	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Storage	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Storage	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Storage	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Storage	- 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
Bluetooth	5.4
Connectors	1 x SPI TPM Header
Connectors	1 x Power LED and Speaker Header
Connectors	1 x 24 pin ATX Power Connector
Connectors	1 x Front Panel Audio Connector
Connectors	1 x RGB LED Header
Connectors	3 x Addressable LED Headers
Connectors	2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
Connectors	1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
Connectors	2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Connectors	1 x Front Panel Type C USB 3.2 Gen1 Header
Connectors	2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Connectors	2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
USB	CPU:
USB	Chipset:
USB	- 1 x USB 3.2 Gen1 Type-C (Front)
USB	- 8 x USB 2.0 (4 Rear, 4 Front)
USB	- 2 x USB4 Type-C (Rear)
USB	- 2 x USB 3.2 Gen2 Type-A (Rear)
USB	- 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front)
Тегло	1.00кг

Дънна платка ASROCK X870 PRO-A WIFI – Освободете мощта на AMD Ryzen 9000 серия

Преминете към новото поколение компютри с дънната платка ASROCK X870 PRO-A WIFI, проектирана за процесори AMD Ryzen 9000 серия на сокет AM5. С поддръжка на PCIe 5.0, DDR5 памет и вграден Wi-Fi 7, тази платка осигурява светкавични скорости за игри, творчество и продуктивност.

Ключови Предимства

Свързаност от следващо поколение — PCIe 5.0 за графики и съхранение, плюс Wi-Fi 7 и 2.5 Gb LAN за ултра-бърза мрежа.
Надеждно захранване — 16+2+1 фазна VRM секция с 60A Dr.MOS гарантира стабилна работа дори при натоварване.
Множество опции за съхранение — Четири M.2 слота (включително един PCIe 5.0) и четири SATA 6 Gbps порта осигуряват място за SSD и HDD дискове.

Технически Спецификации

Спецификация	Стойност
Сокет	AM5
Форм фактор	ATX
Чипсет	AMD X870
Тип памет	DDR5
Слотове за памет	4
Максимална памет	256 GB
M.2 слотове	4
SATA портове	4
PCIe x16 слотове	3
Вграден Wi-Fi	Wi-Fi 7
Скорост на LAN	2.5 Gbps
USB-C портове	2
RGB подсветка	Да
